Arranging Elements

Arranging Elements

Arranging elements on the page will be done using primarily the Selection Tool, and the Multi-Selection Tool.  The Selection Tool looks like a mouse pointer, and the Multi-Selection Tool looks like a mouse pointer with a plus sign next to it.



How to Arrange Elements on the Page

  • Click on an element such as a shape, picture box or text box.
  • By clicking on the box with the Selection Tool, it will make a series of blue dots around the object.

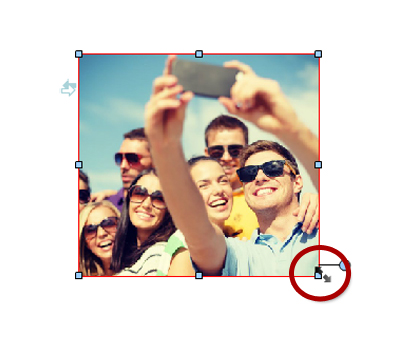

  • Click and drag these to resize the image as shown below.

  • To move an object, hover over the centre of the object until a hand appears.
  • Next, click on the object and drag it around the page as shown below.

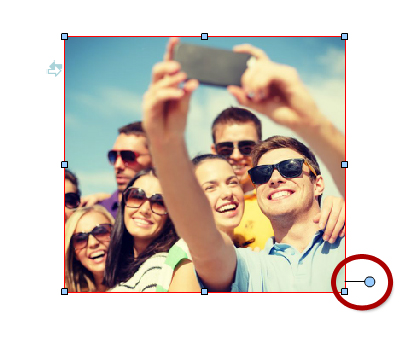

  • The image also has a rotation handle as shown below, you can click and drag this to rotate the image.



  • The image has a swap handle as shown below, you can click this icon and drag the photo to another frame on the page swapping the photos in the respective frames.



Arrange Tools



  • Bring To Front - Will arrange the element to the front of the page.
  • Move Up - Will move an element forward on the page.
  • Move Down - Sends an element backwards once on the page.
  • Send To Back - Sends an element to the back of the page.

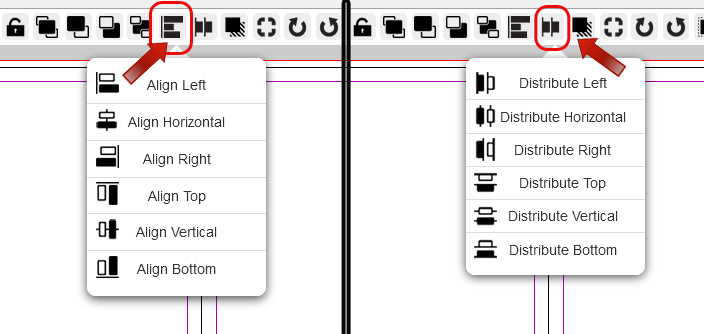

Align Tools

These tools can also aid in arranging your elements on your page by lining them up left, centre right, top or bottom.  Using the multiple selection tool you can select more than one element to begin arranging your page content.
  • Align Left
  • Center Horizontally
  • Align Right
  • Align Top
  • Center Vertically
  • Align Bottom
  • Distribute Horizontally
  • Distribute Vertically
